SMOOTH BORE MEDIUM PRESSURE

Smooth Bore Medium Pressure Hose

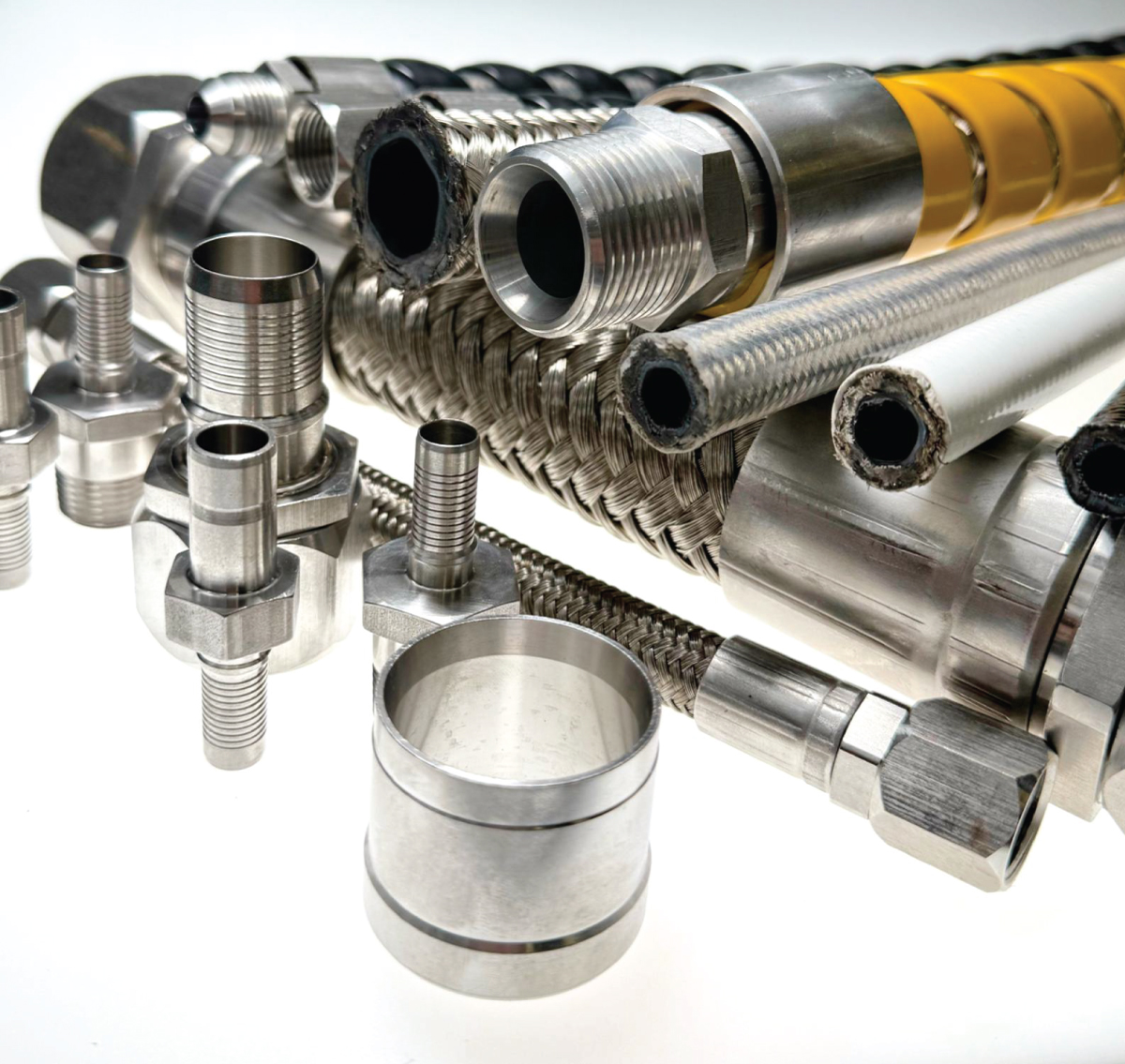

Medium pressure P.T.F.E. extruded tube .030 wall with specific high tensile stainless steel braid cover manufactured to SAE 100R14 specifications is the workhorse of the industry. Widely used for a variety of applications and unique problem solving characteristics. Combine the specificly designed interference fit of our precisely machined fittings with a permanent attachment crimp/swage method resulting in a truly reliable hose assembly.

  • Wide operating temperature range
  • -100º F to +500º F
  • Low coefficient of friction
  • Lightweight and flexible
  • Inert to virtually all chemicals
  • Resistant to aging/oxidation/discoloration

Smooth Bore Medium Pressure Hose


Medium pressure P.T.F.E. extruded tube .030 wall with specific high tensile stainless steel braid cover manufactured to SAE 100R14 specifications is the workhorse of the industry. Widely used for a variety of applications and unique problem solving characteristics. Combine the specificly designed interference fit of our precisely machined fittings with a permanent attachment crimp/swage method resulting in a truly reliable hose assembly.

  • Wide operating temperature range
  • -100º F to +500º F
  • Low coefficient of friction
  • Lightweight and flexible
  • Inert to virtually all chemicals
  • Resistant to aging/oxidation/discoloration
MALE AND FEMALE SWIVEL SAE/JIC CHARTS

Smooth Bore Medium Pressure Male and Female Parts

MALE AND FEMALE SWIVEL SAE/JIC CHARTS

Smooth Bore Medium Pressure Male and Female Parts

HIGH PRESSURE SMOOTH BORE HOSE

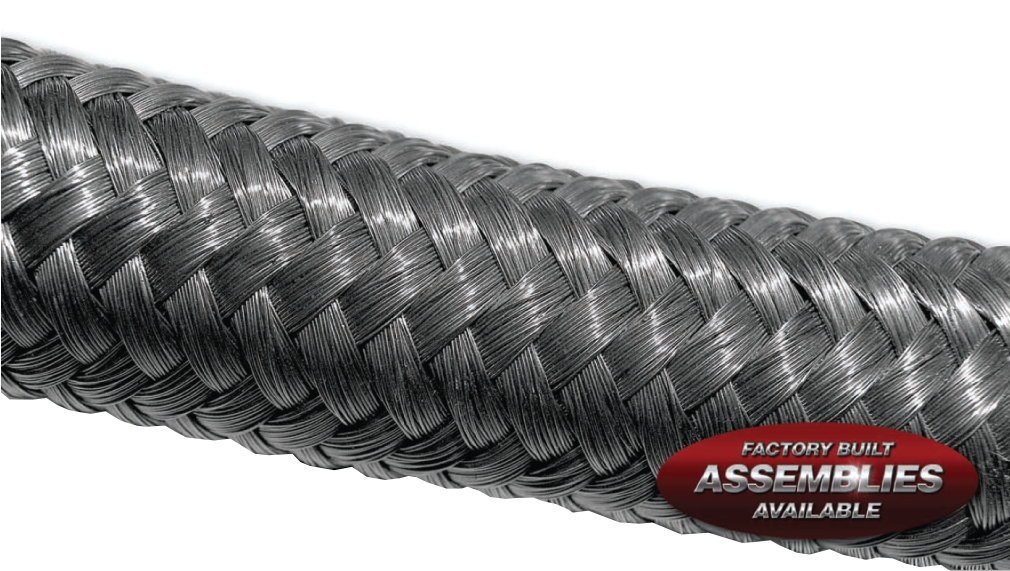

High Pressure Smooth Bore Hose


This lightweight, high pressure hose is designed with the same reliable smooth tube and carbon impregnated tube for static dissipation along with a densely packed Stainless Steel braid to achieve elevated pressure ratings for robust applications.

  • Low coefficient of friction for conveying viscous materials
  • Post sintered tube for compressed gas transfer
  • Low volumetric expansion for high pressure pump systems

High Pressure Smooth Bore Hose


This lightweight, high pressure hose is designed with the same reliable smooth tube and carbon impregnated tube for static dissipation along with a densely packed Stainless Steel braid to achieve elevated pressure ratings for robust applications.

  • Low coefficient of friction for conveying viscous materials
  • Post sintered tube for compressed gas transfer
  • Low volumetric expansion for high pressure pump systems

Smooth Bore High Pressure Female Parts

Smooth Bore High Pressure Female Parts

CONVOLUTED TRANSFER HOSE

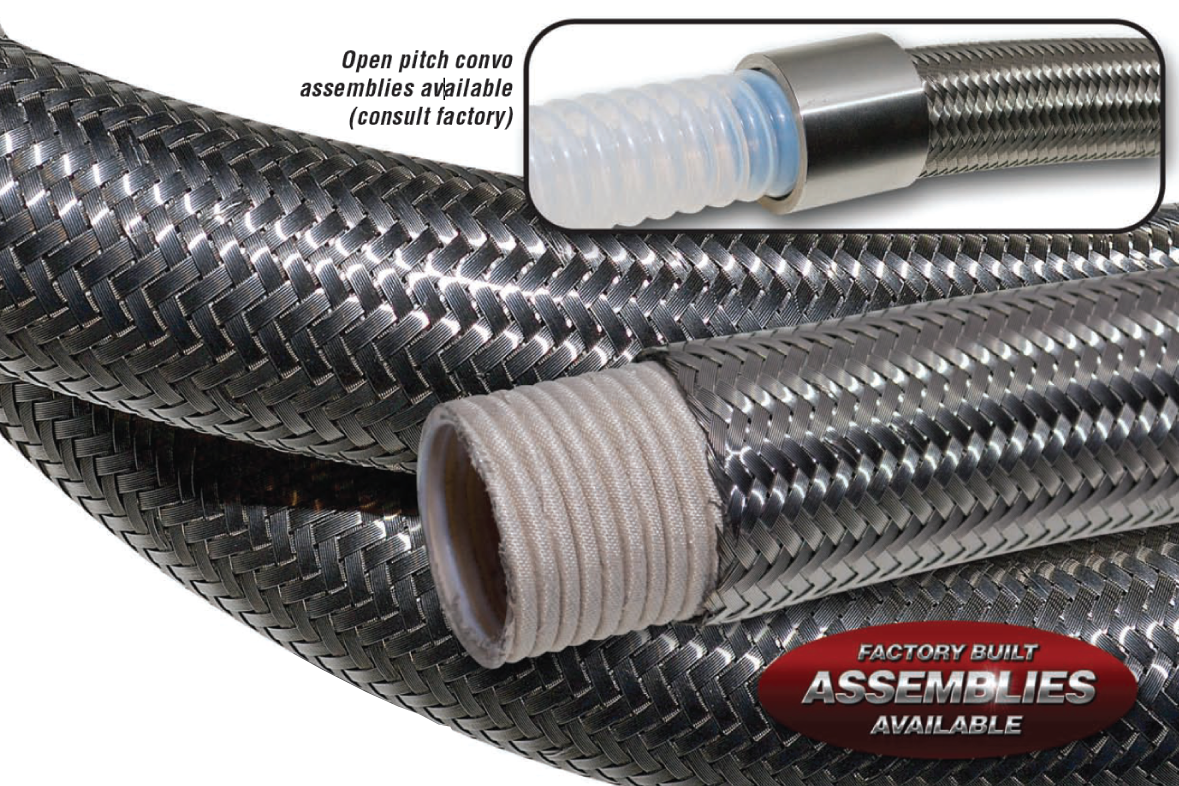

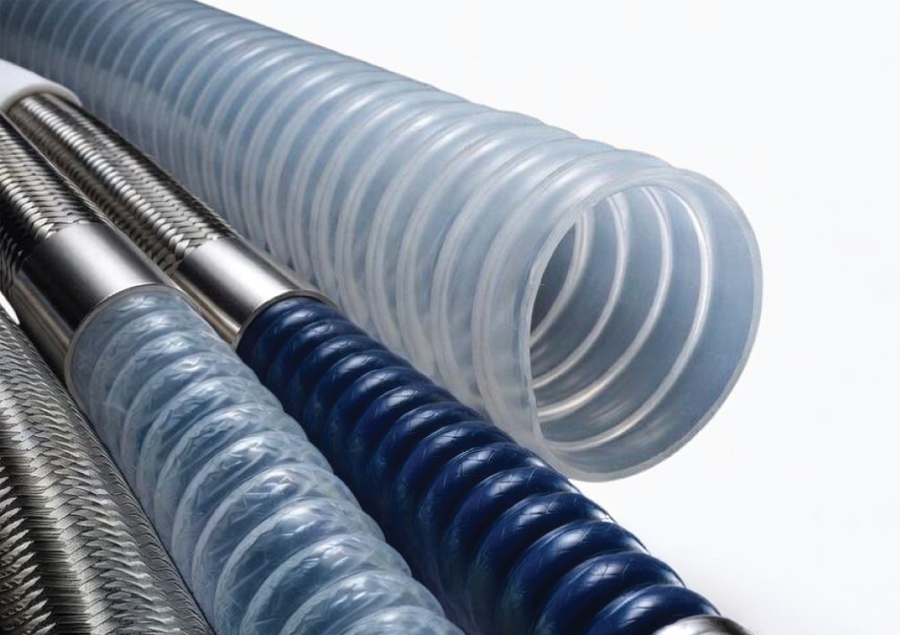

Convoluted Transfer Hose

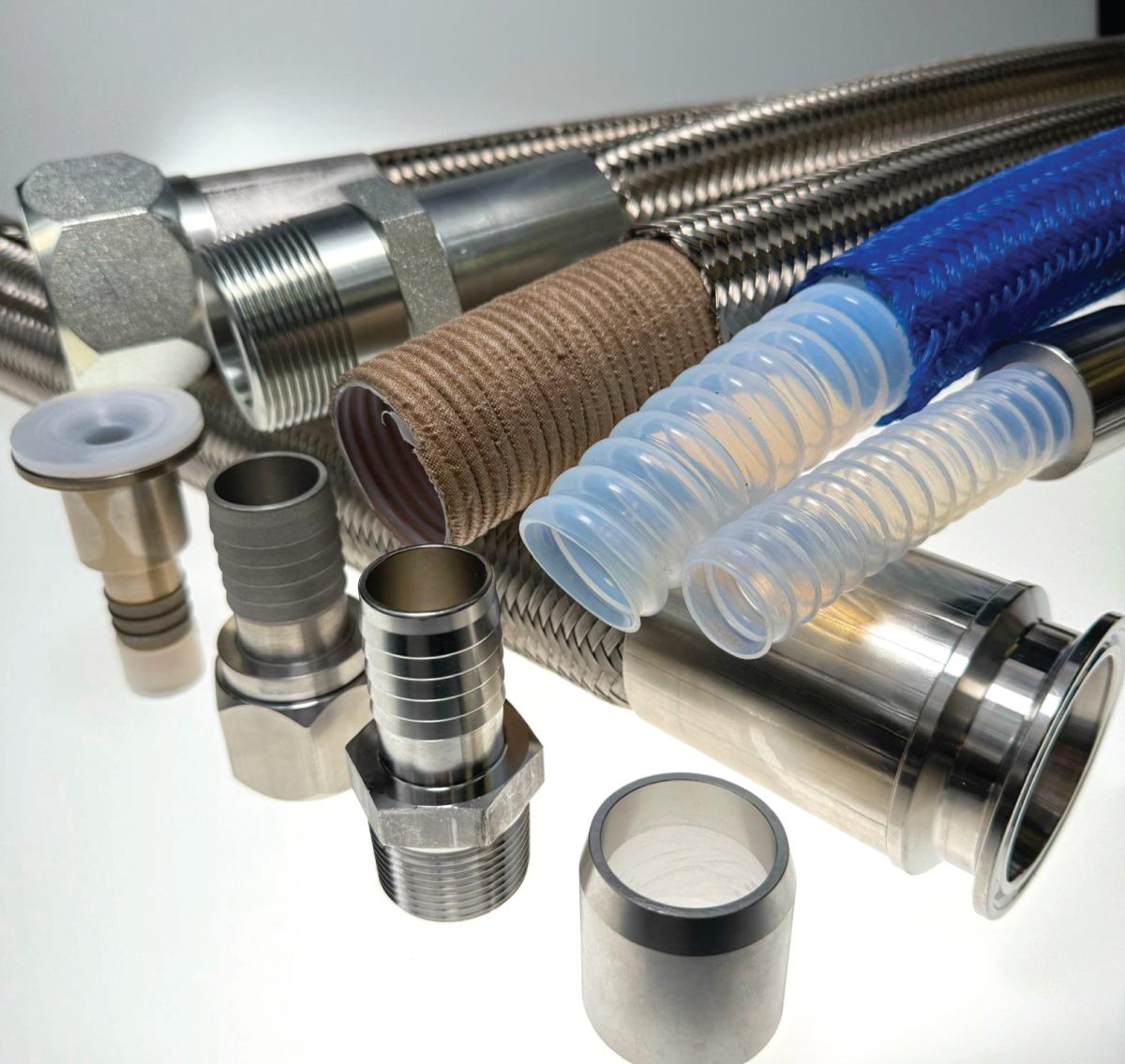

This uniquely designed PTFE helical low profile convolutions and multilayers of fiberglass and stainless steel braid creates a highly flexible hose.

  • Excellent absorption of vibration in dynamic connections
  • Corrosion resistant and chemical inertness
  • Optimal static/pulsating resistance under temperature & pressure

Convoluted Transfer Hose


This uniquely designed PTFE helical low profile convolutions and multilayers of fiberglass and stainless steel braid creates a highly flexible hose.

  • Excellent absorption of vibration in dynamic connections
  • Corrosion resistant and chemical inertness
  • Optimal static/pulsating resistance under temperature & pressure

Convoluted Transfer Hose Male and Female Parts

Convoluted Transfer Hose Male and Female Parts

EXTREME FLEX HOSE

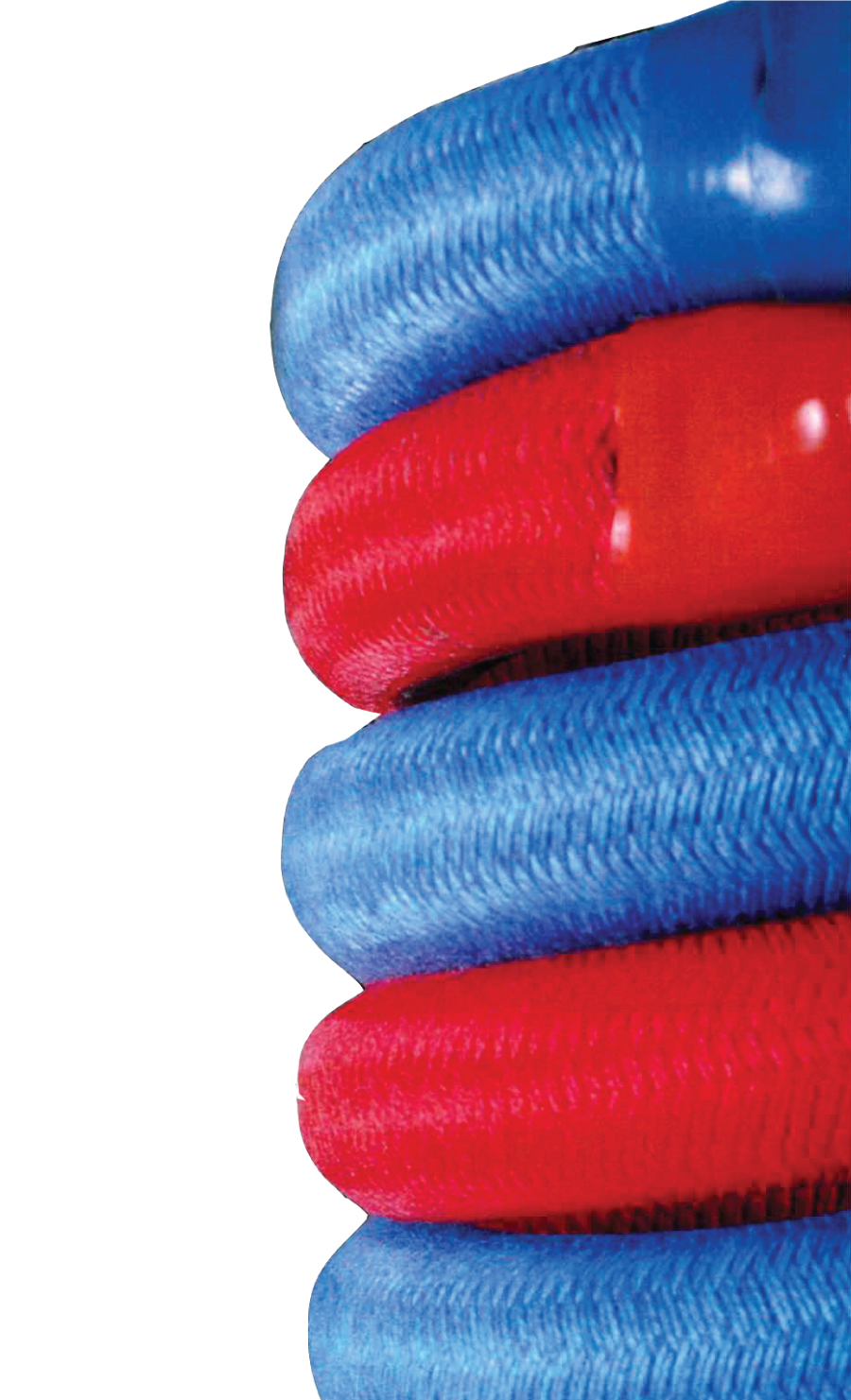

Extreme Flex Hose


Designed and developed for the most severe application where PTFE Smooth tube is best suited. The unique and proprietary multi-layer construction results in an extremely flexible and durable smooth bore product in the industry.

Construction

  • PTFE Conductive Smooth Tube
  • Stainless Steel Braid
  • Extruded Silicone Cover
  • (TP) Polyester Braid
  • Increased Cycle Life
  • Rated up to 500° F

ISO 9001 :2015

Extreme Flex Hose


Designed and developed for the most severe application where PTFE Smooth tube is best suited. The unique and proprietary multi-layer construction results in an extremely flexible and durable smooth bore product in the industry.

Construction

  • PTFE Conductive Smooth Tube
  • Stainless Steel Braid
  • Extruded Silicone Cover
  • (TP) Polyester Braid
  • Increased Cycle Life
  • Rated up to 500° F

ISO 9001 :2015

EXTREME FLEX 1-PIECE FITTING

EXTREME FLEX

Male Pipe Fitting • Carbon Steel 1-Piece

Female Swivel JIC • Carbon Steel 1-Piece

Other alloys and configurations available upon request.

EXTREME FLEX

Male Pipe Fitting • Carbon Steel 1-Piece

Female Swivel JIC • Carbon Steel 1-Piece

Other alloys and configurations available upon request.

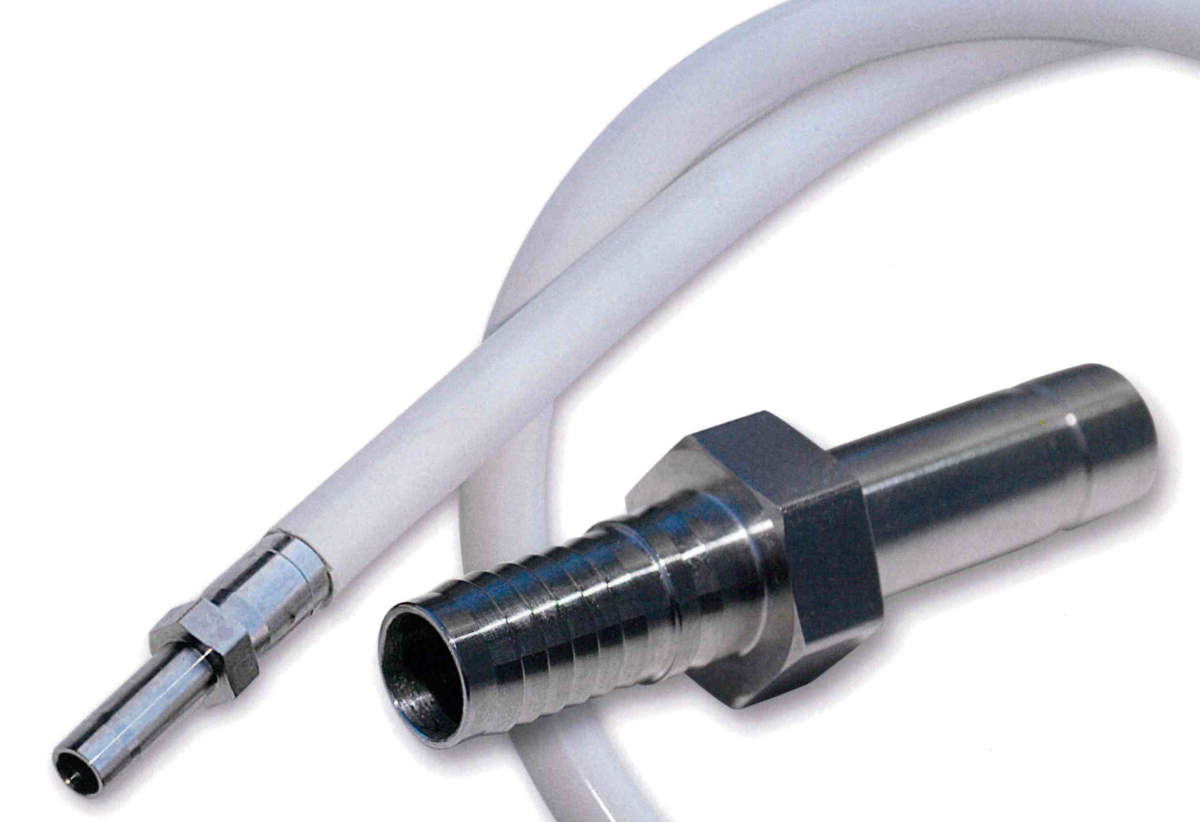

STAINLESS STEEL TUBE FITTING

316 STAINLESS STEEL

Smooth bore hose combined with 316 Stainless Steel Tube fittings provide- an easy installation for a wide variety of applications.

  • Tube grooved to lock mating part
  • Tube accommodates all medium pressure hose including silicone covered

316 STAINLESS STEEL

Smooth bore hose combined with 316 Stainless Steel Tube fittings provide- an easy installation for a wide variety of applications.

  • Tube grooved to lock mating part
  • Tube accommodates all medium pressure hose including silicone covered

CARBON STEEL MEDIUM PRESSURE FITTINGS

Carbon Steel 1 Piece Fittings

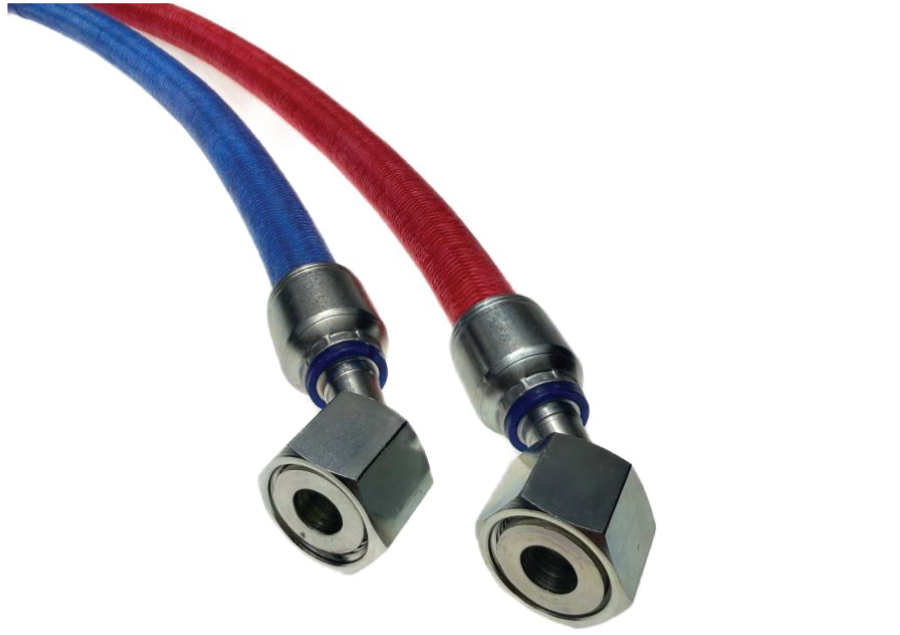

Medium Pressure 100R14 – Male Pipe Fitting

  • Meets or exceeds SAE 100R14 specifications

Medium Pressure 100R14 – Female Swivel JIC

Note: Additional designs available on request : NPSM Female Swivels, Male JIC, 45 & 90 degree elbows O-ring Face Seal, Metric, and BSPP varieties as examples

Carbon Steel 1 Piece Fittings

Medium Pressure 100R14 – Male Pipe Fitting

  • Meets or exceeds SAE 100R14 specifications

Medium Pressure 100R14 – Female Swivel JIC

Note: Additional designs available on request : NPSM Female Swivels, Male JIC, 45 & 90 degree elbows O-ring Face Seal, Metric, and BSPP varieties as examples

SILICONE JACKET PTFE HOT OIL/ FRYER HOSE

This Hot Oil Hose is a smooth bore PTFE core, stainless steel reinforcement hot oil hose with a virgin white silicone cover. All hot fluid transfer hose models handle up to 500°F (260°C) and can be rated for vacuum applications if specified. All fluid transfer models feature excellent flexibility and can be operated in continuous movement conditions. Our state-of-the art extrusion process provides a uniform bonded white (or red) virgin silicone exterior cover resulting in a smaller outside diameter…which translates into a tighter bend radius.

Operating Pressure

  • 1,500 psi operating pressure
  • 6,000 psi burst pressure

Construction

  • Core Material: Smooth Bore PTFE Tubing
  • Reinforcement: 100% Stainless Steel Braid
  • Outer Material: Extruded Virgin White Silicone Cover

Fittings:

  • Male NPT Swivel
  • Male NPT Rigid
  • 37° Female Swivel (JIC)

Many fitting styles available. All fittings available in Stainless Steel or Electroless Nickelplate Steel.

This Hot Oil Hose is a smooth bore PTFE core, stainless steel reinforcement hot oil hose with a virgin white silicone cover. All hot fluid transfer hose models handle up to 500°F (260°C) and can be rated for vacuum applications if specified. All fluid transfer models feature excellent flexibility and can be operated in continuous movement conditions. Our state-of-the art extrusion process provides a uniform bonded white (or red) virgin silicone exterior cover resulting in a smaller outside diameter…which translates into a tighter bend radius.

Operating Pressure

  • 1,500 psi operating pressure
  • 6,000 psi burst pressure

Construction

  • Core Material: Smooth Bore PTFE Tubing
  • Reinforcement: 100% Stainless Steel Braid
  • Outer Material: Extruded Virgin White Silicone Cover

Fittings:

  • Male NPT Swivel
  • Male NPT Rigid
  • 37° Female Swivel (JIC)

Many fitting styles available. All fittings available in Stainless Steel or Electroless Nickelplate Steel.

COVERING STYLES

SANTOPRENE EXTRUDED COVERING

Produced in black or blue in sizes up to – 12

  • Good abrasion resistance and chafe guard qualities
  • Resistant to UV, ozone, and most alkalis and acids
  • Improves bend radius and increases cycle life

SILICONE EXTRUDED COVERING

Integrally extruded over smooth bore hose up to – 12

  • Standard colors of Red,White and Blue “NSF”
  • Silicone provides a margin of safety where steam or hot oils are conveyed to external contact (400º F )
  • Improves,fl exibility,kink resistance,hoop strength

HYTREL EXTRUDED COVERING

  • Produced in Glossy Black
  • High durometer provides greatly improved abrasion resistance compared to natural rubber x 8
  • Improves hose life under severe conditions

PVC EXTRUDED COVERING

  • Clear covered for auto sport market

POLY BRAID COVERING

  • Braided directly over medium pressure hose
  • Increases bend radius,hoop strength and kink resistance
  • Excellent abrasion resistance and safety features benefi t
  • Protects against SS under braid from fraying and poking
